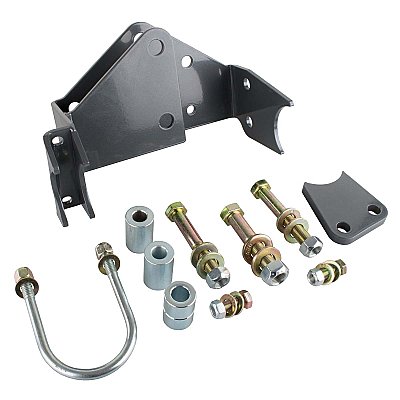

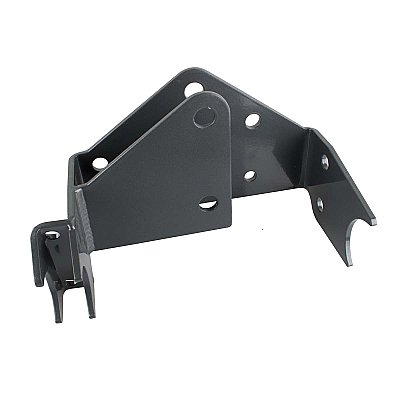

XP302 - Synergy Track Bar Relocation Bracket - JK

wholesale.apexchassis.com\/products\/xp302-track-bar-relocation-bracket-jl-jt?variant=44859228979421

Be sure to check vehicle fitment below

  • Compatible with 3.0" and taller lifts
  • Heavy duty front track bar bracket for the Jeep JK
  • This bracket raises the vehicle's axle side track bar mount by 3.0"
  • The vehicle's rollcenter is raised, reducing body roll and dramatically improving overall handling
  • Special bolt-on design strengthens the factory mount that is prone to failure
  • Laser cut from 3/16" steel & 2 stage powdercoat finish for maximum strength and durability
  • The bracket relocates the factory or aftermarket steering stabilizer up and out of harms way
  • Suspension components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance

Note: Maximum wholesale discount is 10%

FITMENT NOTES:

  • Requires use of minimum 3" bump stop spacer
  • Requires use of steering drag link flip kit
  • 8055 Track Bar Bracket is not recommended for hydro assist applications.
  • If using a front adjustable track bar make sure track bar can be collapsed far enough to center axle. Track bar will need to be close to stock length once relocated.

NOTE:

Warranties are covered through Synergy
